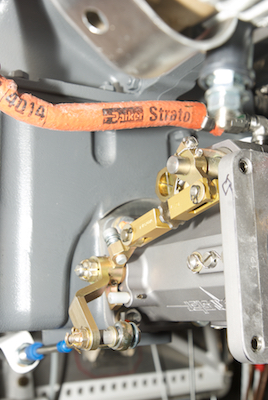

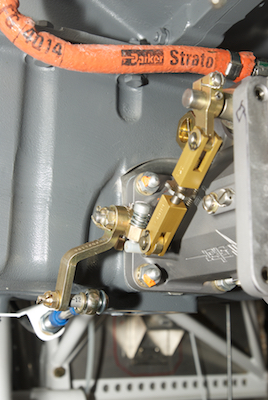

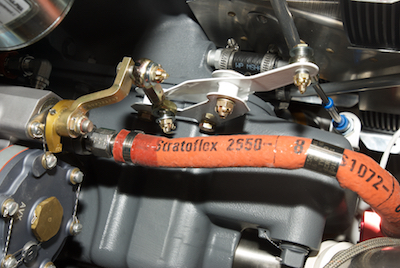

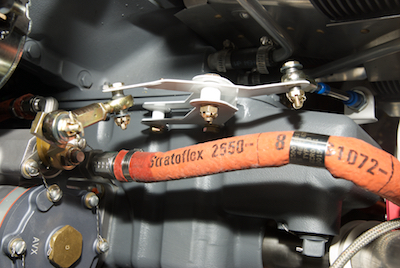

The cables to control the mixture, throttle and prop had all been previously routed and before final installation of the snorkel, I attached them to their respective linkages. The top two pictures show the throttle fully opened and closed respectively. The bottom two pictures show the mixture full rich and at idle cut off respectively. Notice that the mixture cable needs a reversing mechanism that I assembled from the kit.
|
