The first two pictures show the same pieces after they were cleaned up. However, in picture one you can see that they are not flat like they need to be, so after some whacks of a hammer in a vice they are shown straightened out in the second picture.

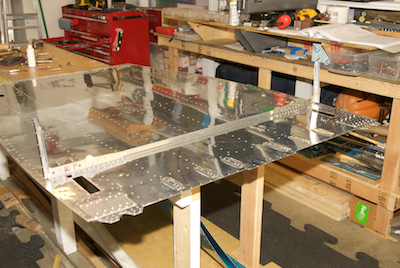

The pieces are then assembled and attached to the bottom skin.
