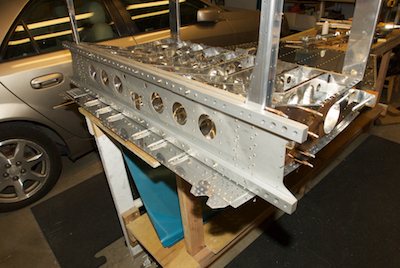

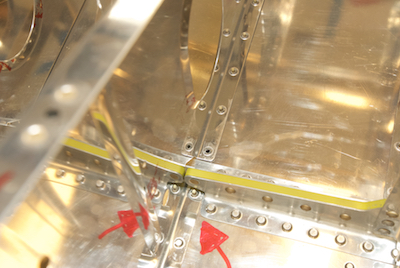

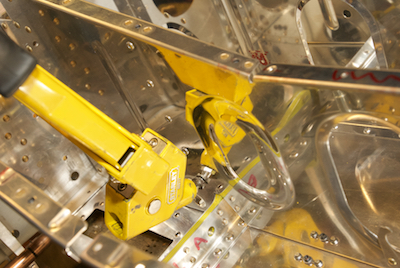

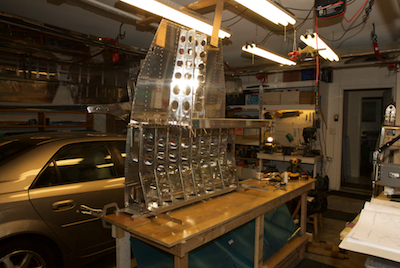

With all the prep work of the aft main spar, rear spar, ribs and skin it is time to start assembling the seating area. The bottom of the seat will be supported by the ribs between the main spar and rear spar as shown in the first picture. To rivet it together, I stood the whole thing up on the spar. This worked very nicely. The last two pictures show some hard to get to rivets. The first rivet is hard to buck, but it can be done. The second one is a hard to reach pulled rivet. You can see my little angle tool over the rivet and the contortions my rivet puller can achieve.
|
