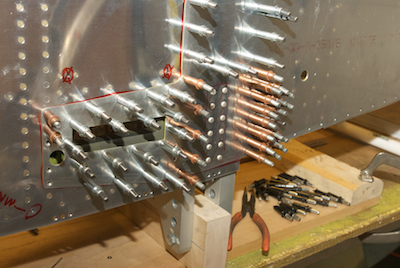

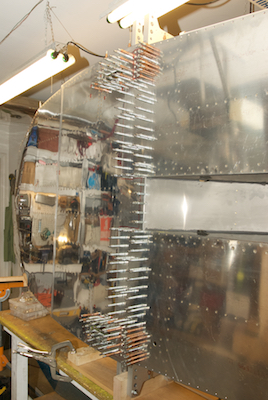

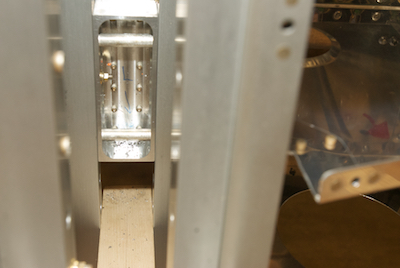

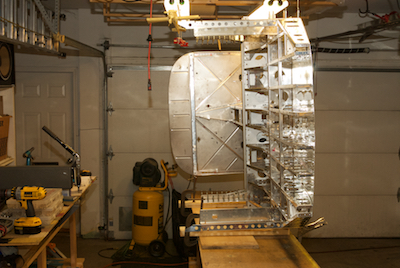

These are various views of the fuselage before final riveting. In the third picture, you can see 12 CherryMax pulled rivets that have been installed. The machined aluminum block they attach to is shown in the last picture between the two spar sections with two large bolts running through it, providing the lower clamping force to the spar sections..
|
