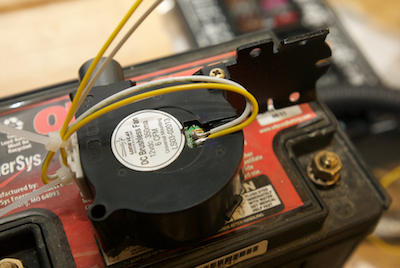

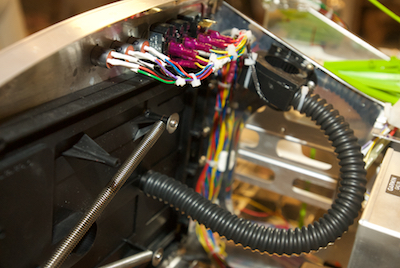

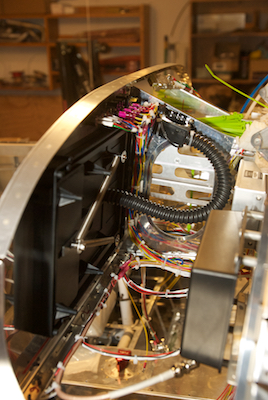

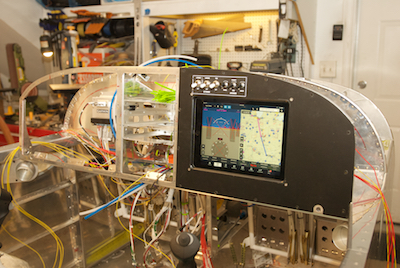

In the last set of pictures, the instruments and switches were not wired in and working. I took the panels all out and started final wiring of the iPad side of the panel. Pictures two and three show the final wiring behind the panel for the lights and iPad. The black tube in the pictures is for cooling air from a small fan. It keeps the iPad - which can overheat - cool. I had problems with it after I installed it. It turns out that the port on the back of the fan that the tube connects to has some play and when attaching the tube it impinged on the impeller and the fan wouldn’t rotate. While taking it all apart to fix, the very thin wire leads that if came with broke off. The last picture shows new heavier leads attached. |
