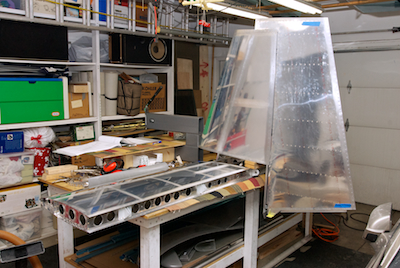

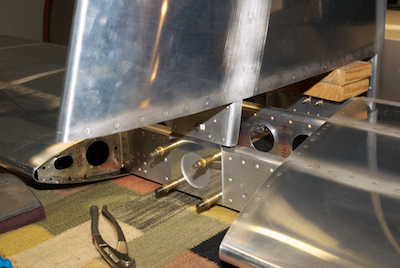

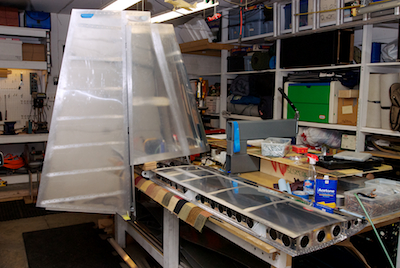

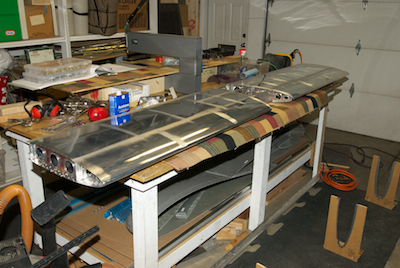

No pictures of the process, but the rear spar got attached to the ribs and then I installed the 200 rivets that run along the flanges with the squeezer. The first picture shows the completed HS. It was time to take a group picture of all three of the completed pieces flying in close formation. In picture three you can see that I clekoed the bracket in place that attaches the VS to the HS. I put a bolt through the hole and supported the rear of the VS with a couple of blocks of wood to get it in its approximate final position. I was then able to set the rudder in place - not attached however - and get some pictures of it all. The elevator is next.
|
