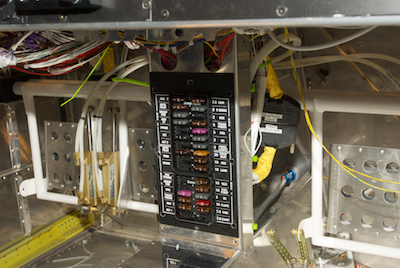

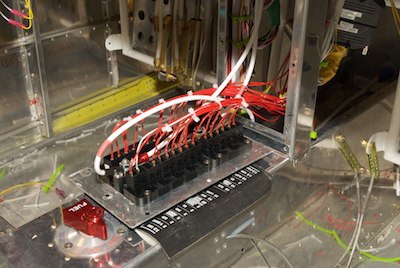

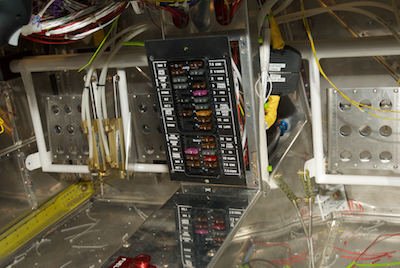

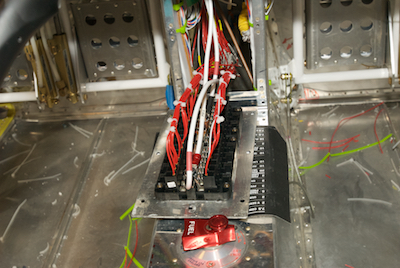

These pictures show the final bundling of the wires, included the bus leads and insertion and mounting to the lower console panel. The red LED light I referred to earlier that is mounted under the panel will illuminate this.
